One of the things I hate is keeping track of various service accounts. Even with a modern password manager it can be a pain. Today I’ll be showing how to authenticate into the Portainer instance we set up with our Microsoft account.

Let’s log into our Portainer and set up some ground work. In the Administration Panel go to User-related -> Teams -> Create Team and name it whatever you’d like.

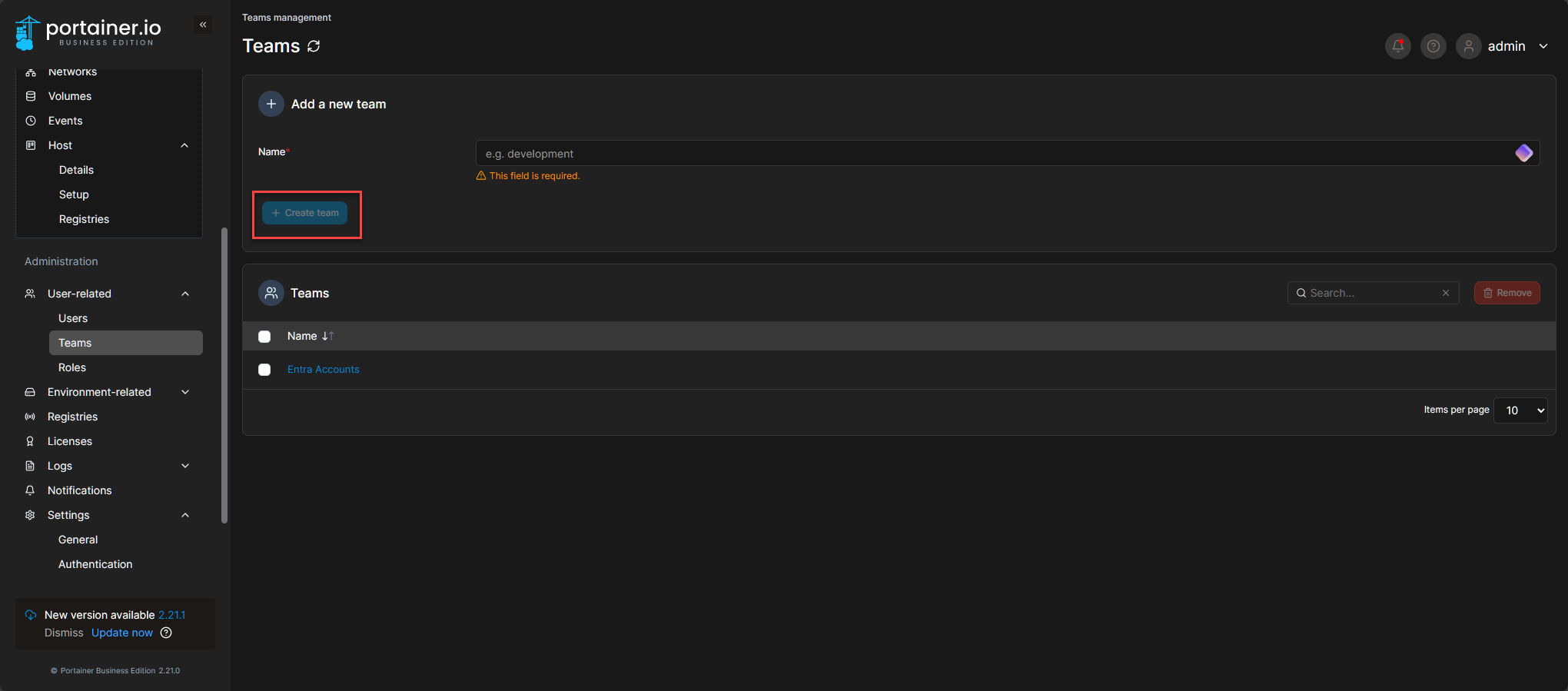

Portainer Teams page with the Create team button highlighted and an Entra Accounts team already listed

Now if we drop down to Settings -> Authentication we see some options. Let’s select OAuth, toggle Automatic user provisioning and select the group we just created in the Default Team dropdown.

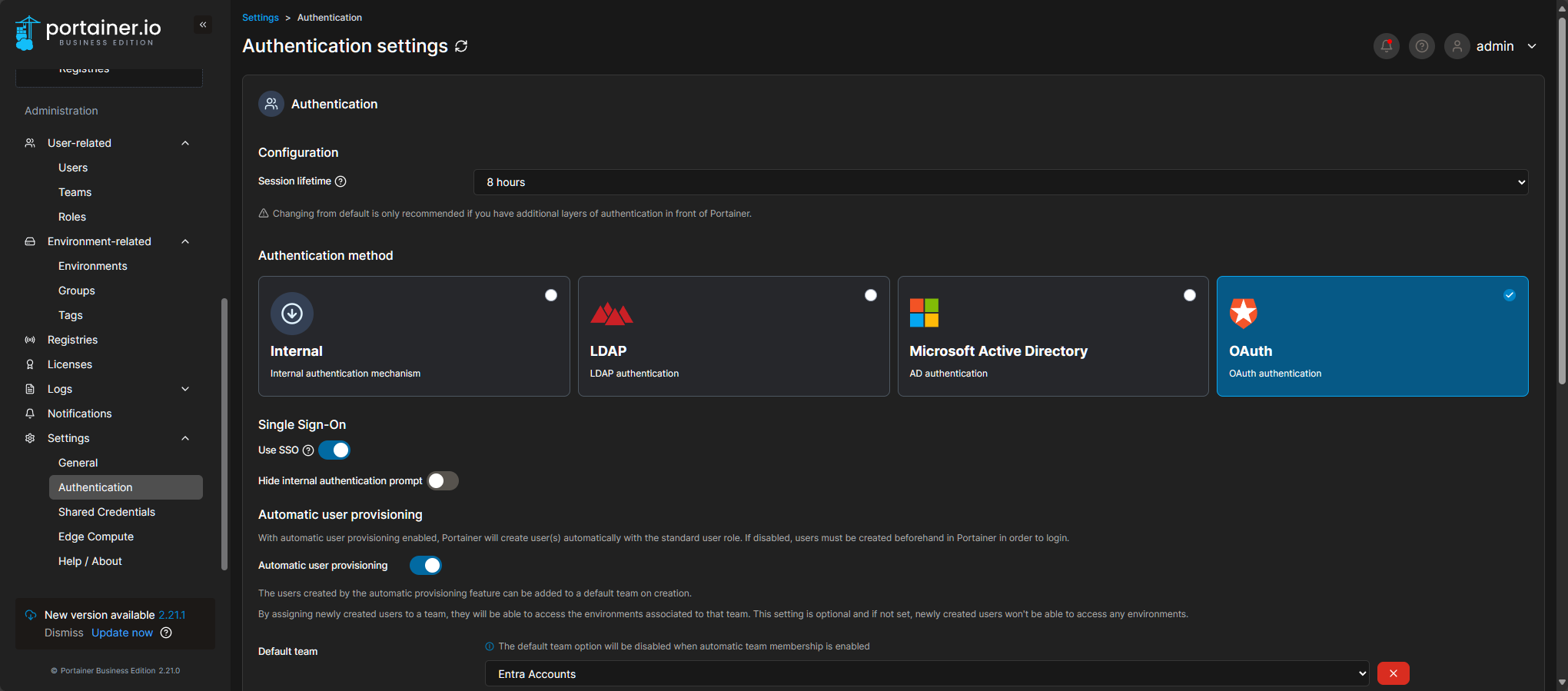

Portainer Authentication settings with OAuth selected, Automatic user provisioning on, and Entra Accounts as the default team

If we select Microsoft in the Provider select we see it asking for the following fields:

Tenant ID
Application ID
Application key

For these we need to go our Entra tenant. We go to Applications -> App Registration -> New Registration.

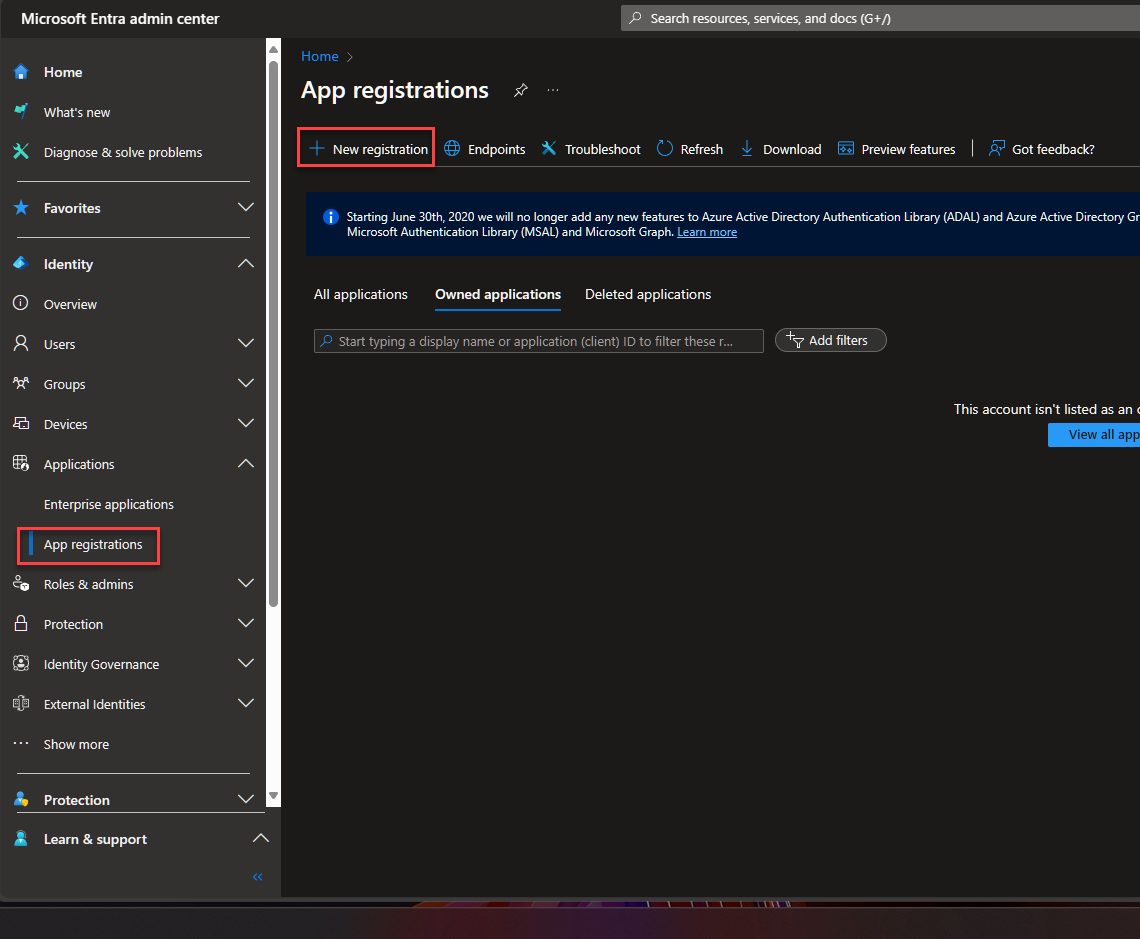

Microsoft Entra admin center App registrations page with App registrations in the menu and the New registration button highlighted

Fill out what you’d like the app name to be, make sure it’s accounts in this org only, and then insert your Portainer’s URL and click on Register.

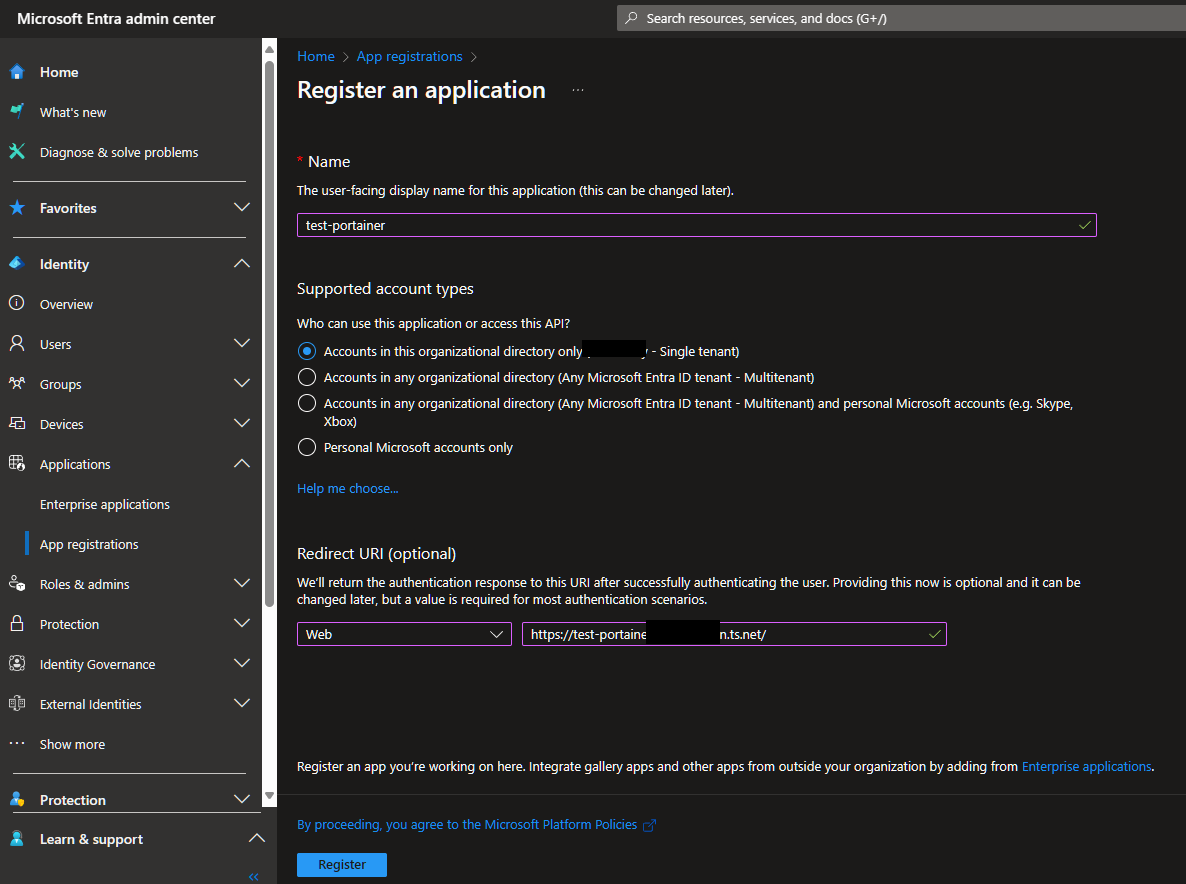

Entra Register an application form with name test-portainer, single tenant selected, and the Portainer URL as a Web redirect URI

You should be within the App now after registering it. Go to Certificates & Secrets -> New Client Secrets. Enter a description and set the Expiration time, we’re going to go with default 180 days.

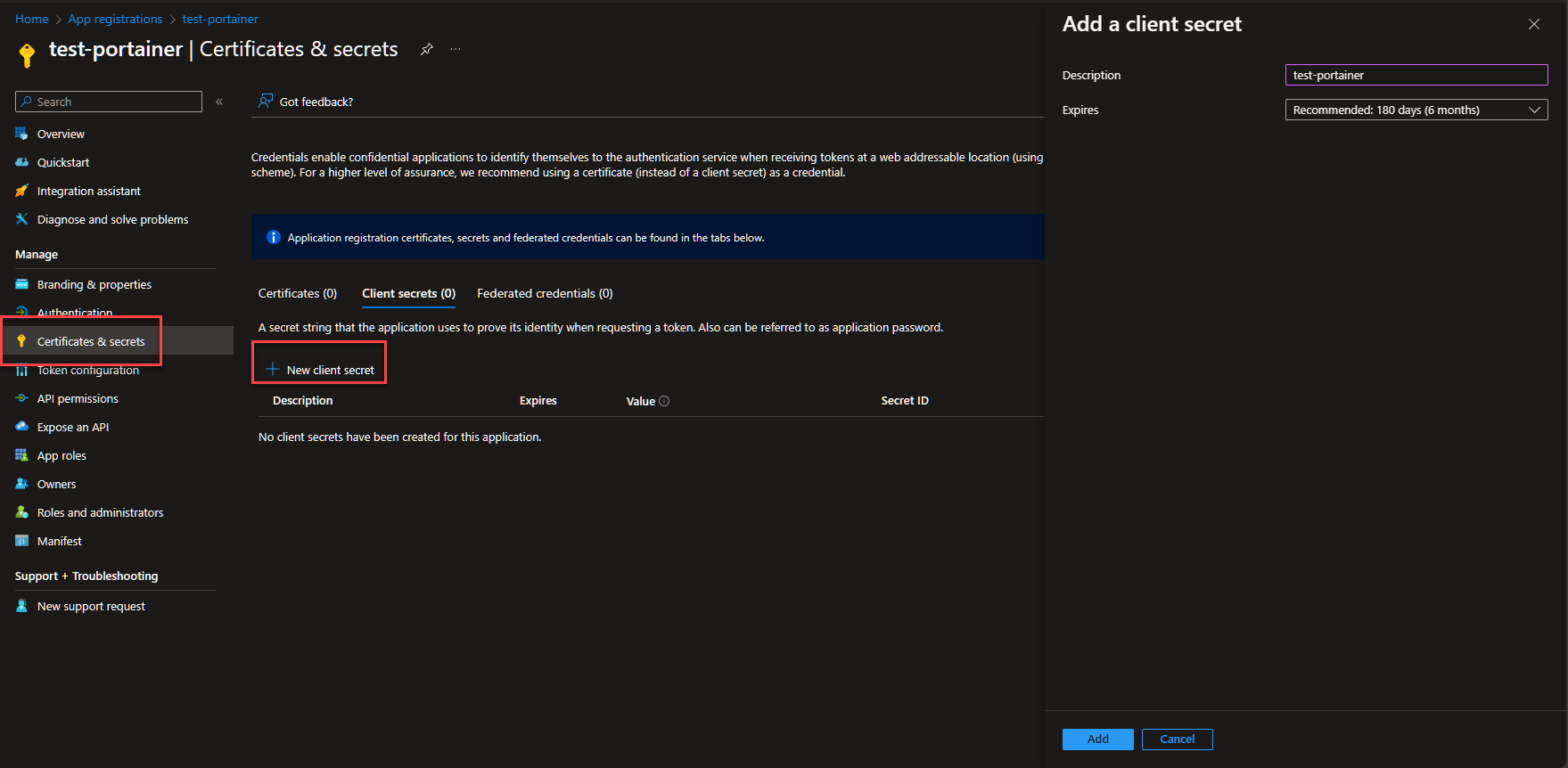

Entra Certificates and secrets blade for test-portainer with the Add a client secret pane open and the 180 day default expiry

Click on Add and record the value somewhere, it’s only going to show the one time. This is going to map to the Application key field that Portainer wants.

Now if you go to the Overview blade you should see the other two items that are being requested.

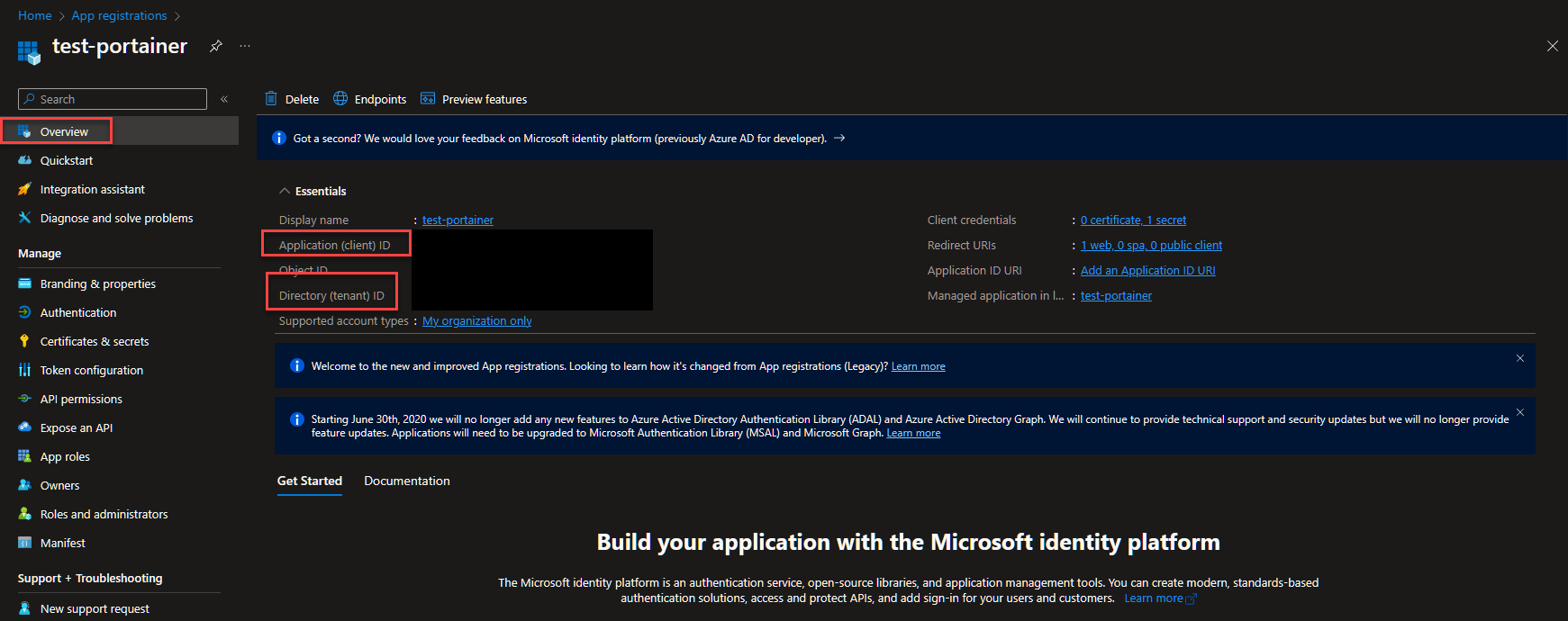

Entra Overview blade for test-portainer with the redacted Application (client) ID and Directory (tenant) ID highlighted

Fill out the fields in Portainer and hit Save Settings.

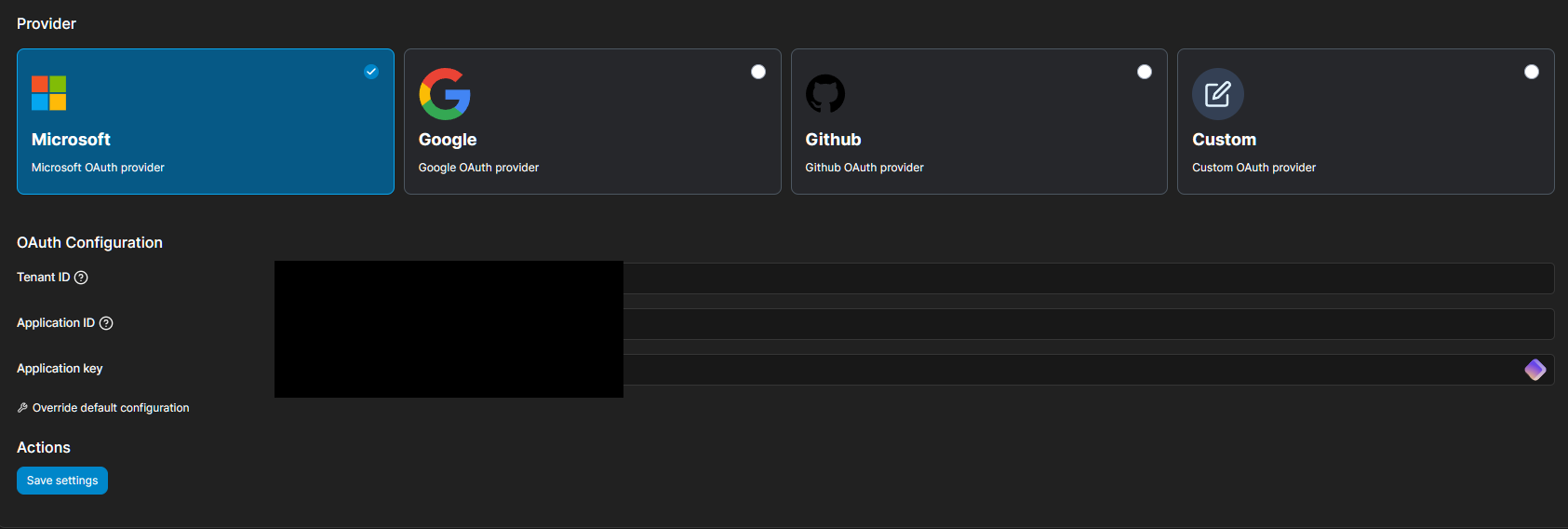

Portainer OAuth settings with the Microsoft provider selected, the redacted Tenant ID, Application ID and Application key, and Save settings

Go to API permissions -> Add a Permission. Select Microsoft Graph and Delegated permissions, then add the following: email, openid, profile. Finally, once they are added. Make sure to click Grant Admin Consent for your tenant.

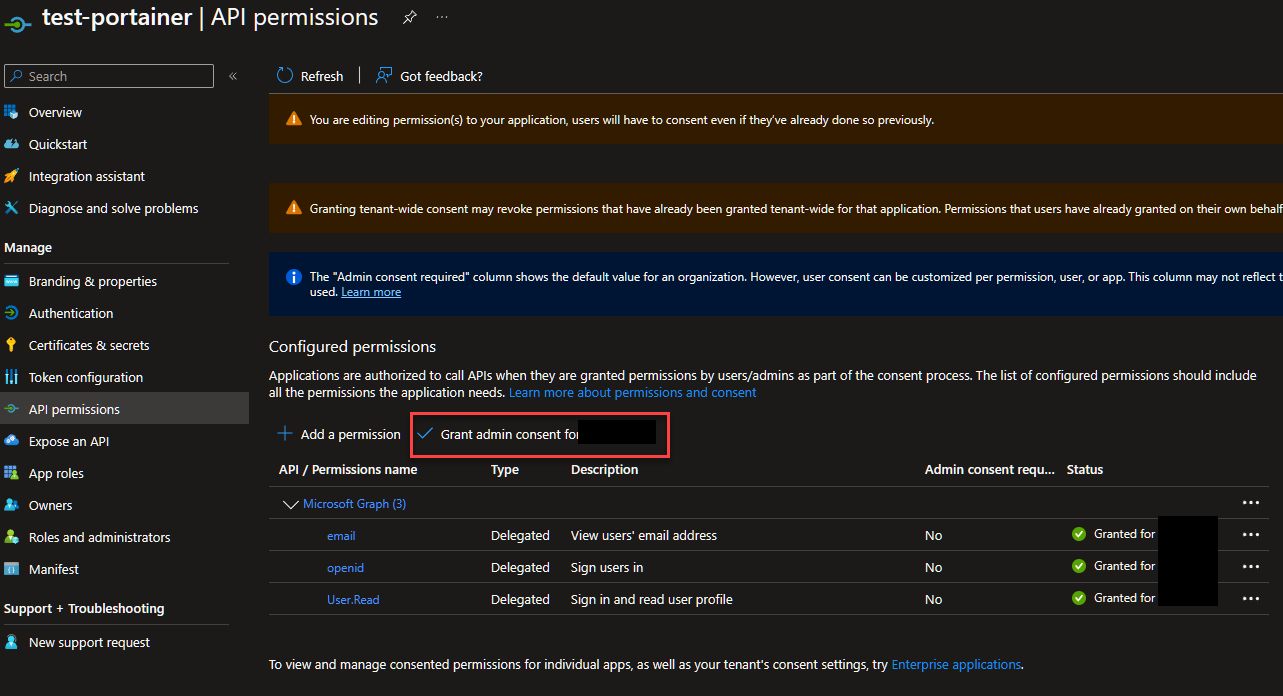

Entra API permissions blade for test-portainer listing delegated Microsoft Graph permissions with Grant admin consent highlighted

Now if we log out of Portainer and back in we see a new screen. Let’s click Login with Microsoft.

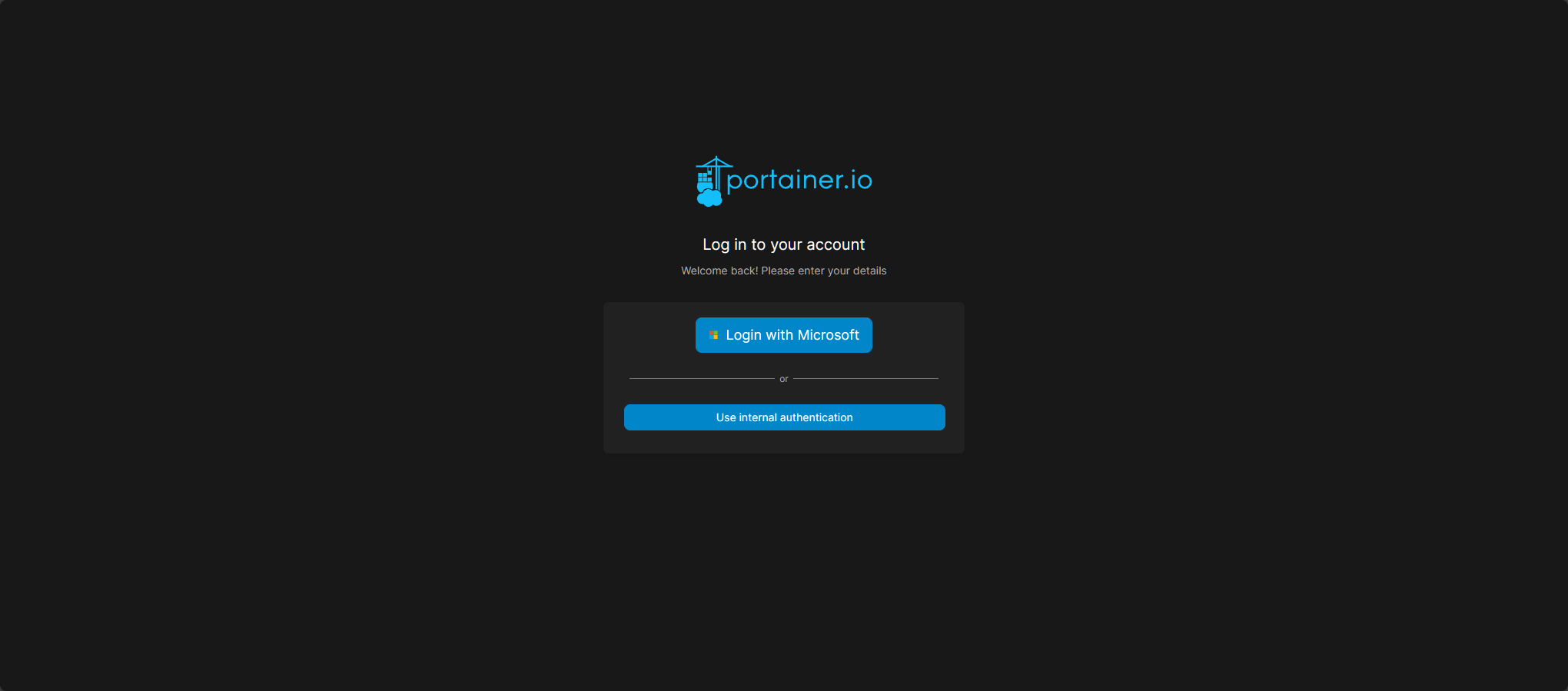

Portainer login page offering Login with Microsoft above a Use internal authentication button

If we login with our MS credentials we should see the Portainer landing page witho our MS account in the top right, but we can’t view anything.

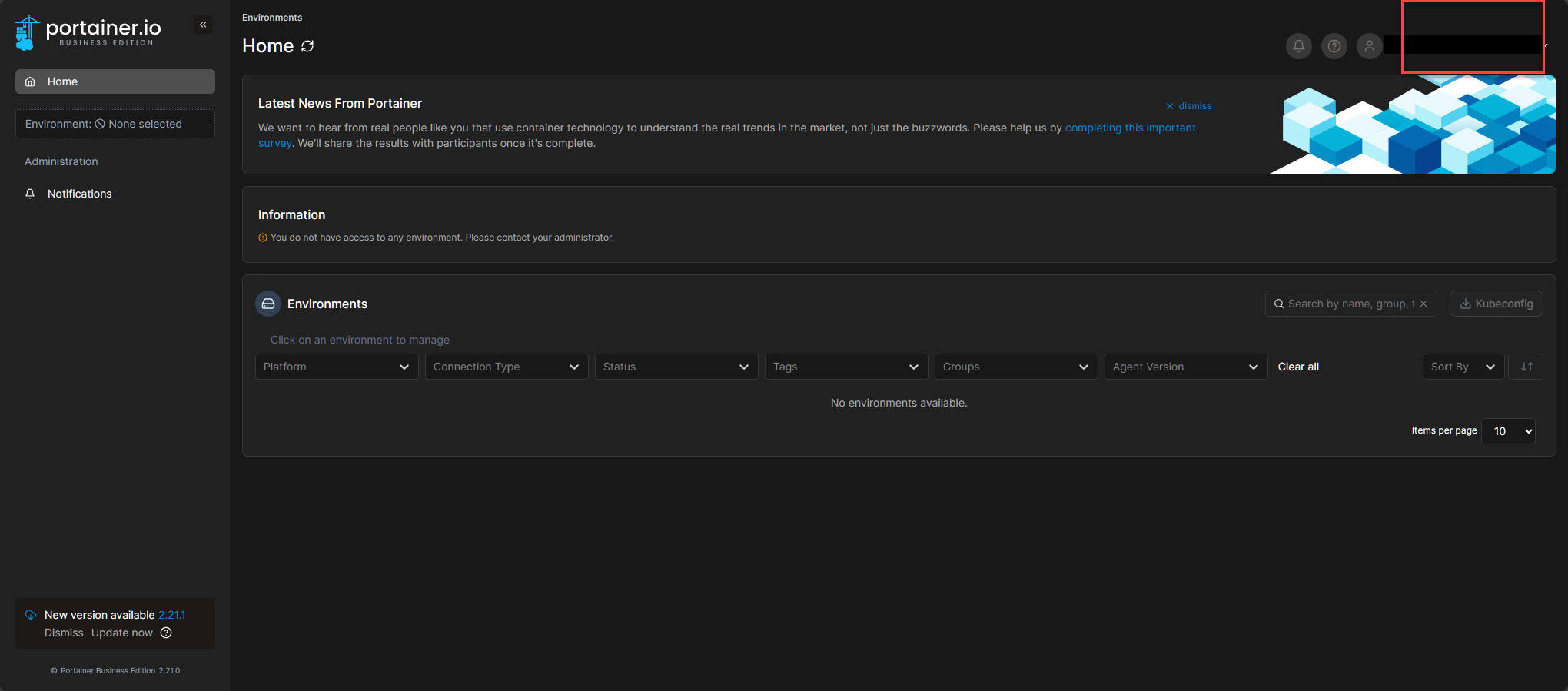

Portainer Home page after Microsoft sign in with the redacted account in the top right and a no access to any environment notice

Log out and then back in with the Use Internal Authentication option, our Admin credentials and let’s grant our new user permissions. If we go to the Users section we should now see our MS account with Oauth Authentication.

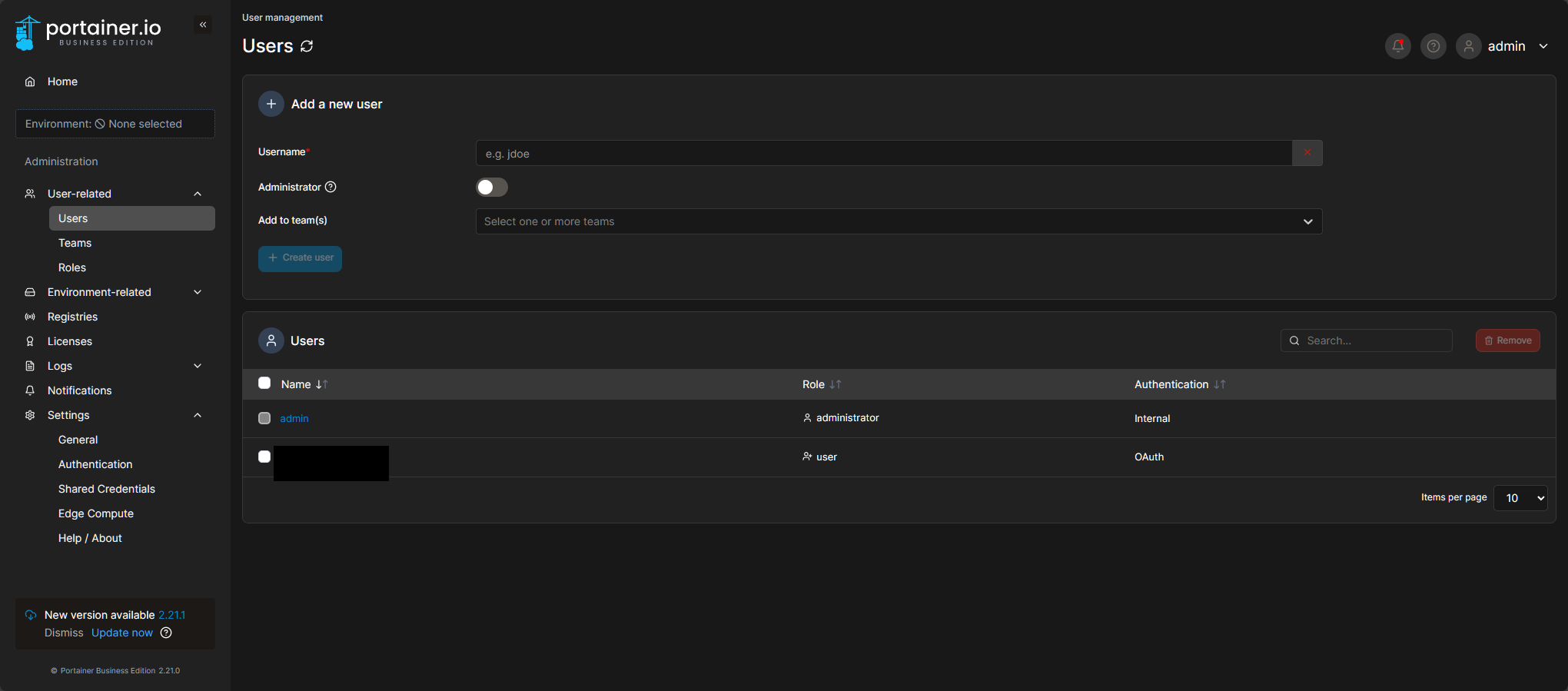

Portainer Users page listing the internal admin account and the redacted Microsoft account with OAuth authentication and the user role

Click on the user and flip the toggle to Admin. Now your MS account has access to all the things in Portainer.

You now could remove the ability to login with Internal Auth by making the appropriate toggle in the Authentication section if you feel you can remember to update the secret before the one you just made expires.
